Thursday, 13 November 2008

How to show "Hatch" patterns in coarse detail.

I have been asked this a couple of times recently.
There are people out there that like to show steel beams in coarse mode ( single lines ), but, when they do the fill ( hatch to us old draughtsman ) in core walls doesn't display.

This is easily remedied.

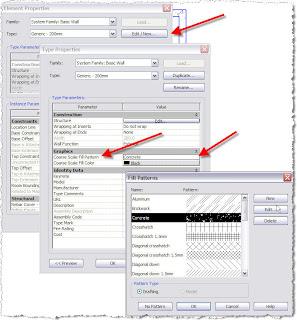

Select the wall and go to its element properties --> Edit/New and under Graphics you will see Coarse Scale Fill Pattern. Select this via the three little dots and choose the desired fill pattern.
