Ever wanted the same section / Callout / Detail referenced in more than one place.

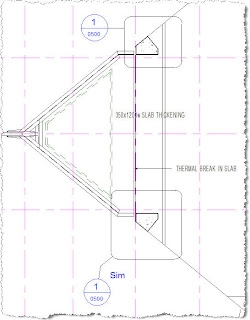

It does happen quite regularly that you have a typical section or detail and you want to show the section marks or detail number in more than one place. The problem with Revit is that it names and numbers it automatically for you. So how do you get round this ?
After putting in your first section marks , any subsequent ones before you actually place them put a tick in "Reference other view:" and select the view from the pulldown list.
Then place your section mark and Revit will name and number it the same as the original.
